figure 590 00

• for UP-PLUS, UP-ETA-THERM, UP quarter turn stop valves and water meter combinations CLASSIC

• chrome-plated collar

handle for flush-mounted valves

figure 591 00

• for UP-PLUS, UP-ETA-THERM, UP quarter turn stop valves and water meter combinations CLASSIC

• chrome-plated collar

operating cover for flush-mounted valves

figure 597 00

• for UP-PLUS, UP-ETA-THERM, UP quarter turn stop valves and water meter combinations CLASSIC

• to fix flush-mounted valves in pre-wall-installations

fixing set UP-PLUS

figure 599 00

• 90 mm, can be cut to lenght

• for UP-PLUS, UP-ETA-THERM, UP quarter turn stop valves and water meter combinations CLASSIC

UP-PLUS extension set

figure 596 11

• for stop valve water meter series RG120 Fig. 854 02/05/07 and Fig. 855 47 as well as for stop valve water meter mounting block ECO-DUO Fig. 853 07

RG120 grip top die-cast zinc set-up dimensions to 32mm

figure 596 12

• for stop valve water meter series RG120 Fig. 854 02/05/07 and Fig. 855 47 as well as for stop valve water meter mounting block ECO-DUO Fig. 853 07

RG120 grip top die-cast zinc set-up dimensions 30mm to 110mm

figure 596 16

• for stop valve water meter series RG120 Fig. 854 02/05/07 and Fig. 855 47 as well as for stop valve water meter mounting block ECO-DUO Fig. 853 07

RG120 grip top plastic set-up dimensions up to 32mm

figure 596 17

• for stop valve water meter series RG120 Fig. 854 02/05/07 and Fig. 855 47 as well as for stop valve water meter mounting block ECO-DUO Fig. 853 07

RG120 grip-top plastic, set-up dimensions 30mm to 110mm

figure 596 15

• for stop valve water meter series RG120 Fig. 854 02/05/07 and Fig. 855 47 as well as for stop valve water meter mounting block ECO-DUO Fig. 853 07

RG120 change stopper including extension for set-up dimensions to 110mm

figure 855 00 001

• made of black plastic

• to be connected at the lug of the water meter combination bodys type CLASSIC

• sound decoupling with sidewise bolts

base plate for stop valve water meter combination CLASSIC for figur 855 27 and figur 885 27

figure 855 00 002

• consisting of black plastic blind cap and chrome-plated cover collar

• adhesive for sticking onto tile to conceal the mounting opening with subsequent mounting of the water meter measuring capsule

cap for stop valve water meter combinations and mounting blocks

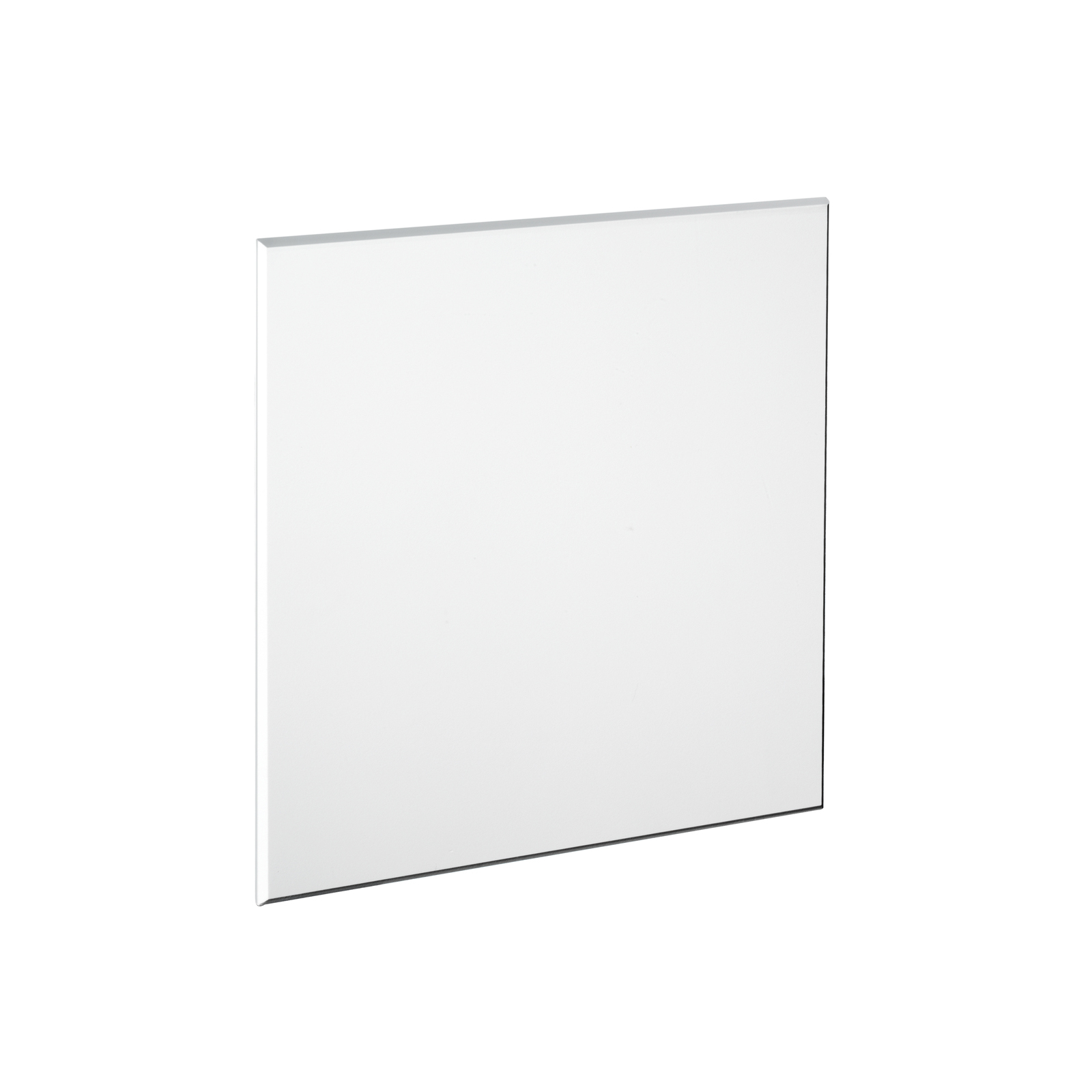

figure 870 00 004

• suitable for radio readout of water meter

• including two magnets and pole screws for adjustment

• magnets with 200 N tensile force

• size 280 x 280mm

plastic cover panel, white, for stop valve water meter box

figure 870 00 006

• including two magnets and pole screws for adjustment

• magnets with 200 N tensile force

• size 280 x 280mm

• not for radio readout of water meter

stainless steel panel for stop valve water meter box

figure 870 00 008

• including two magnets and pole screws for adjustment

• magnets with 200 N tensile force

• size 280 x 280mm

• not for radio readout of water meter

galvanised sheet steel cover panel, white, for stop valve water meter

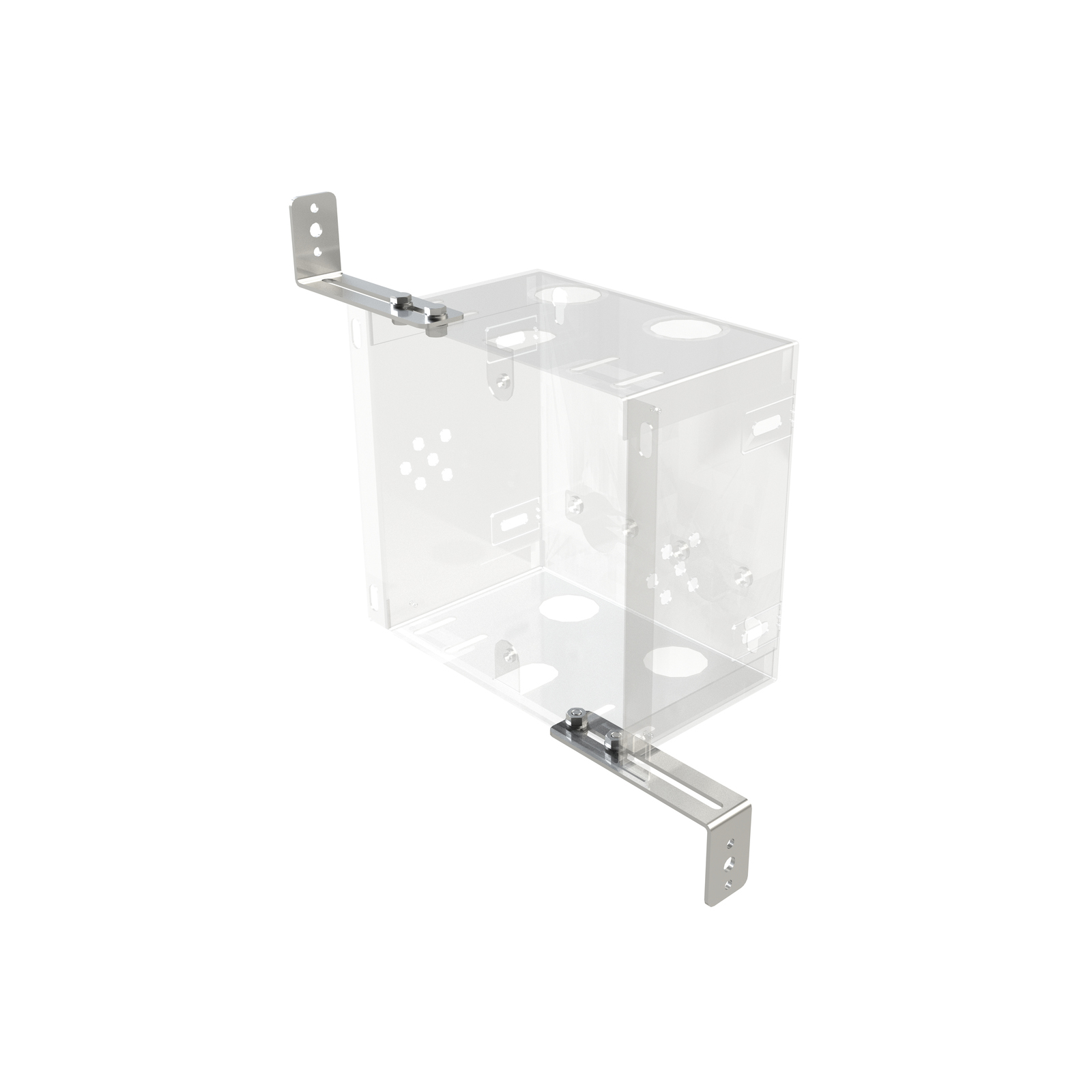

figure 870 00 002

• for easy installation of the water meter combination box

• with slot holes for variable installation depth of appx. 25mm

• including screws, washers and nuts

• consisting of 2 brackets (multiple sets can be used for one box if required)

bracket set for stop valve water meter box

figure B5105 500 00 005

• for UP-PLUS, UP-ETA-THERM, UP quarter turn stop valves and water meter combinations CLASSIC

• made of black plastic

socket wrench
