figure 591 01 015

• suitable for figure 540, 542, 544, 545, 546

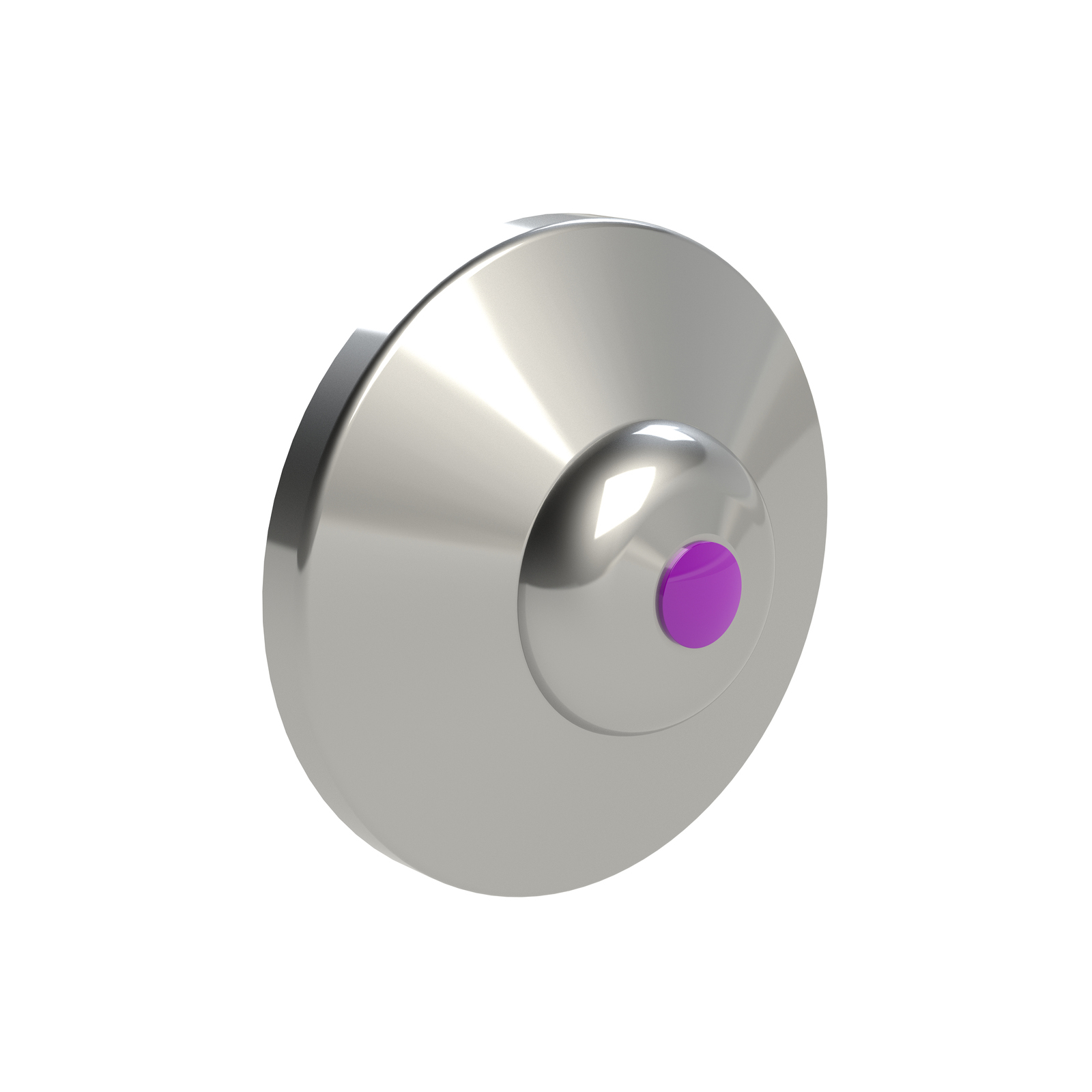

• chrome-plated cap with allen socket for 6mm allen key under purple identification plate

Operating cover for ETA-THERM thermostatic balancing valve

figure E0109 140 00 003

• suitable for figure 140, 141, 142, 143

• isolating unit with temperature sensor pocket

• wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water

Shut-off bonnet for MULTI-THERM thermostatic balancing valve

figure E0109 540 01

• control range 62°C - 64°C

• suitable for figure 134 0G, 136 00, 540 62

• wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water

• with expansion material control cone incl. stop

• Colour of ring: red

Balancing bonnet 62-64°C for ETA-THERM thermostatic balancing valve

figure E0109 140 00

• control range 30°C - 50°C

• suitable for figure 140 0G, 142 00

• with expansion element, balancing cone, incl. bonnet gasket

• wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water

Balancing bonnet 30-50°C for THERM thermostatic balancing valve

figure E0109 141 00

• control range 50°C - 65°C

• suitable for figure 141 0G, 143 00

• with expansion element, balancing cone and protection cap, incl. bonnet gasket

• wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water

Balancing bonnet 50-65°C for MULTI-THERM thermostatic balancing valve

figure E0109 150 02

• for MULTI-FIX-PLUS manual circulation balancing valves manufactured from 01/2014 (Figure 150 2G/4G/5G/6G and Figure 151 02/04/05/06)

• wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water

• incl. EPDM-bonnet gasket

Balancing bonnet for MULTI-FIX-PLUS static balancing valve

figure E0109 540 00

• control range 56°C - 58°C

• suitable for figure 130 0G, 131 00, 540 02, 542 2, 544 02

• wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water

• with expansion material control cone incl. stop

• Colour of ring: natural colour/transparent

Balancing bonnet 56-58°C for ETA-THERM thermostatic balancing valve

figure E0109 540 02

• control range 44°C - 46°C

• suitable for figure 132 0G, 540 42

• wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water

• with expansion material control cone incl. stop

• Colour of ring: blue

Balancing bonnet 44-46°C for ETA-THERM thermostatic balancing valve

figure E0120 041 01

• suitable for figure 041 0G

• with expansion element, balancing cone and protection cap, incl. bonnet gasket

Balancing bonnet 50-65°C for NIRO MULTI-THERM thermostatic balancing valve

figure E0120 078 00

• suitable for figure 078 0G, 078 1G and 178

• EPDM coated and compact throttle cone

• indication of pre-setting on bracket

bonnet made of stainless steel for throttle valves

figure Z0100 140 00 001

• suitable for figure 140, 141, 142, 143

Cap for MULTI-THERM shut-off unit
