figure 138 4G

• frequency output signal

• wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water

• male union thread

CONTROL-PLUS flow and temperature sensor, Hz signal, union thread

figure 138 6G

• standard industrial signal (4 to 20 mA)

• wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water

• male union thread

CONTROL-PLUS flow and temperature sensor, 4 - 20 mA signal, union thread

figure 138 00 012

• to connect measuring valve figure 138 4G or 638 4G to BMS, KHS LOGIC Control System or KHS Mini Control System, or to connect the pressure measuring valve figure 138 00 008 to BMS

• possible evaluation of flow and temperature via frequency input 5 VDC, 10 - 450Hz or Pt1000 2 wire input

M12x1 cable with loose litz wires

figure 138 00 006

• to measure the pressure in drinking water installations

• can be connected to BMS via M12x1 cable with loose litz wires

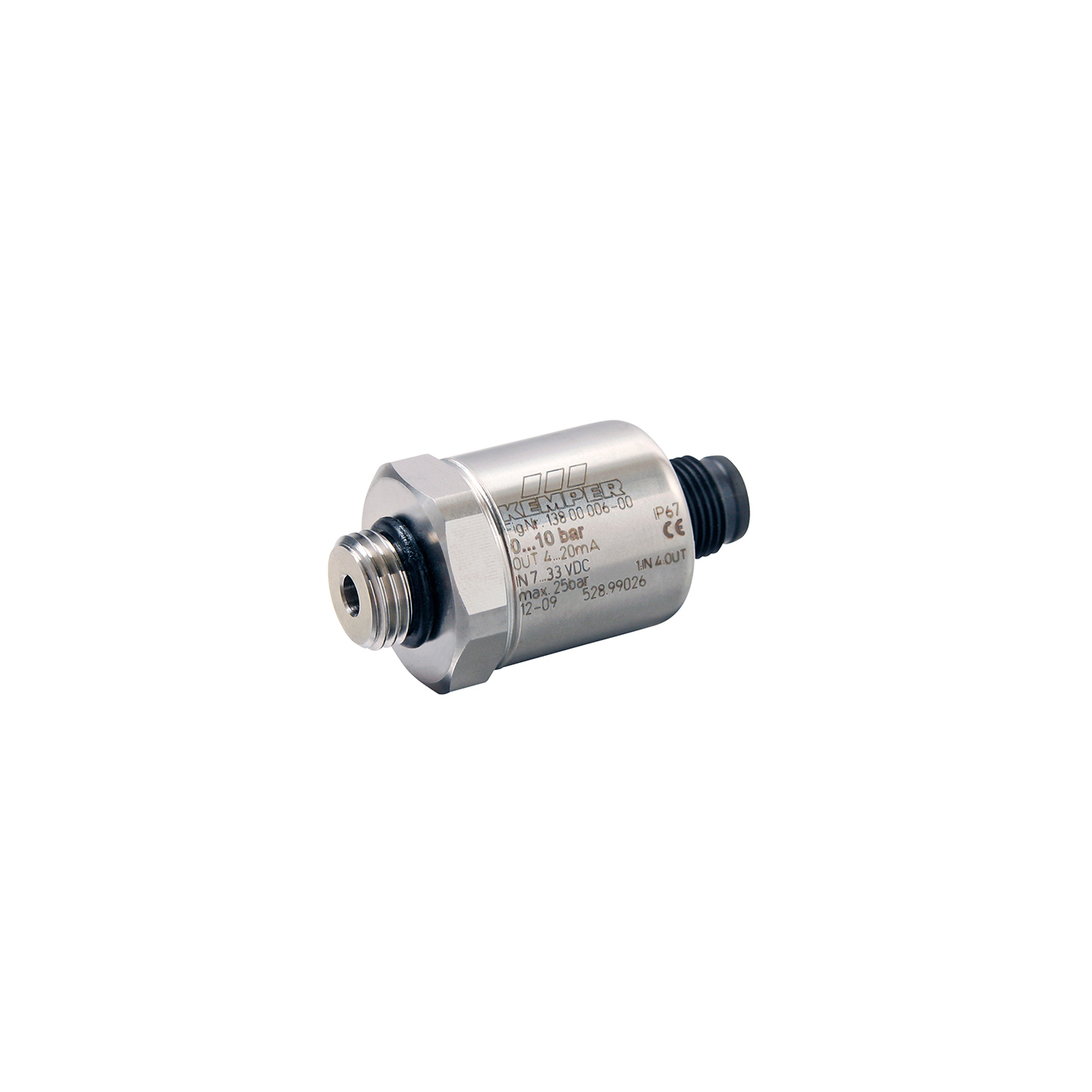

pressure sensor

figure 138 00 016

• for connection of the KEMPER Pressure Sensor to the CONTROL-PLUS potable measuring instrument

• connection cable length 2 m

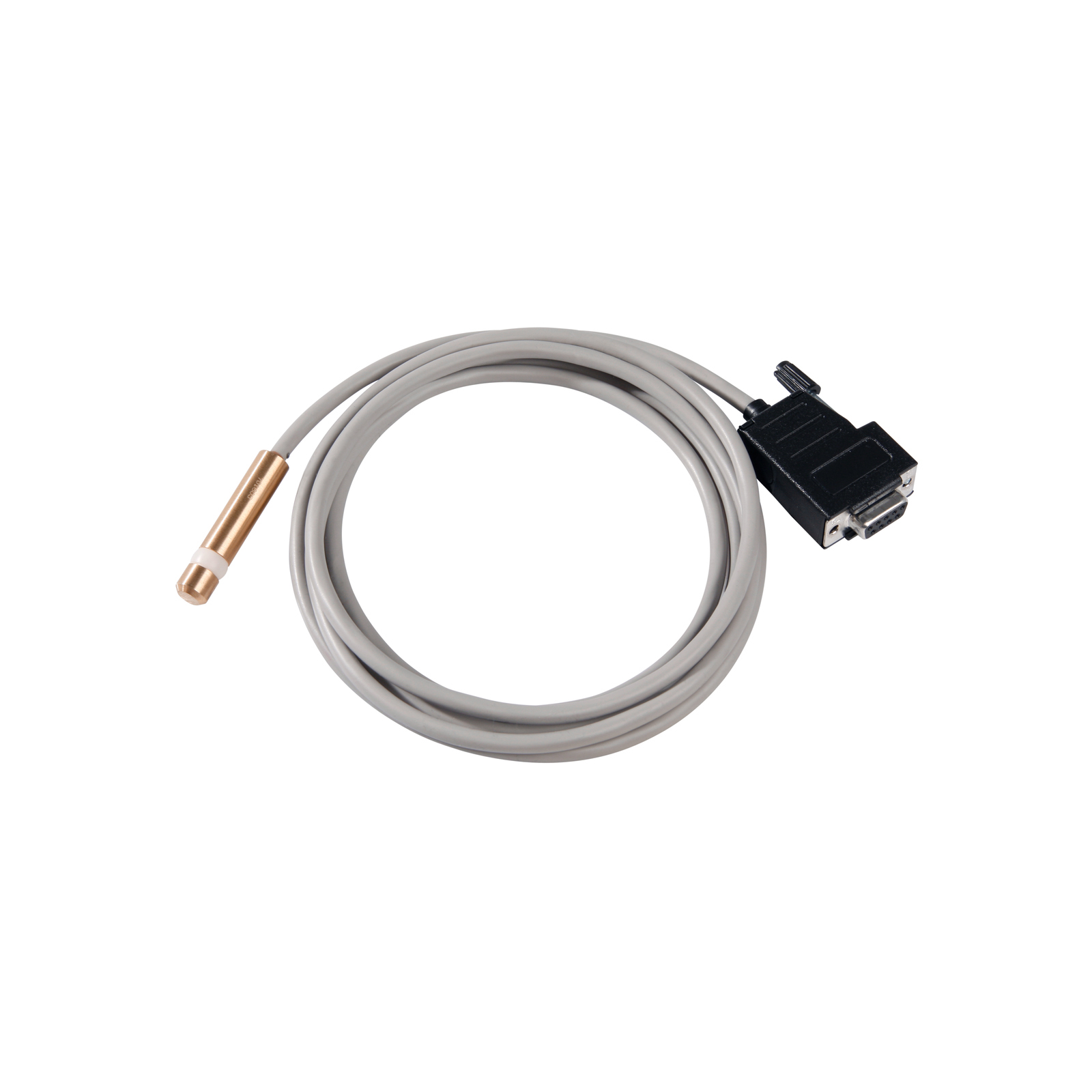

cable for pressure sensor

figure 138 00 003

• to measure water temperatures, especially outlet water temperatures of plumbing installations

• with Pt1000 sensor element

• cable length 1 m

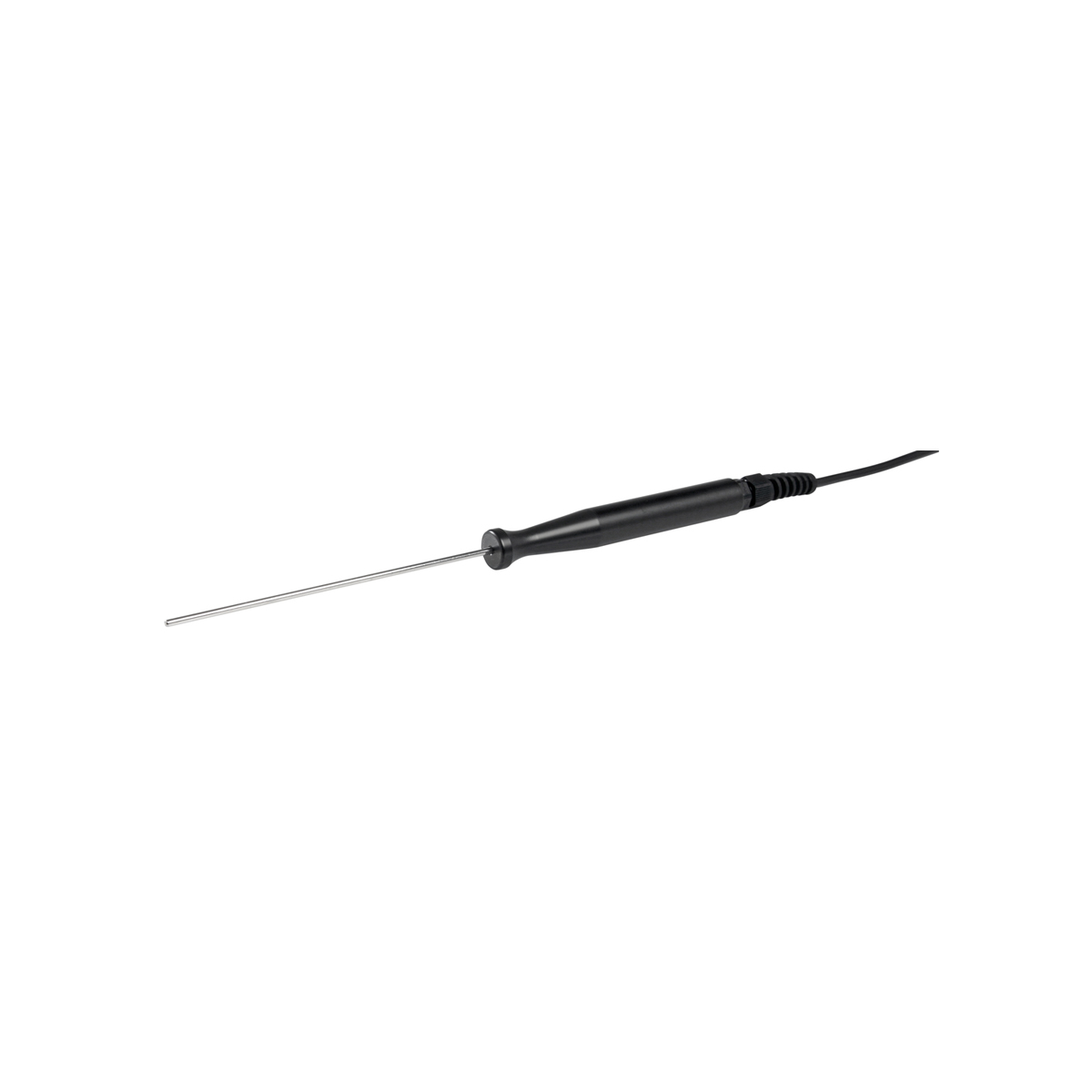

hand-held temperature sensor

figure 138 00 004

• for easy connection to CONTROL-PLUS potable measuring instrument (Part No. 1380000200)

• two-wire technology

• for all dimensions

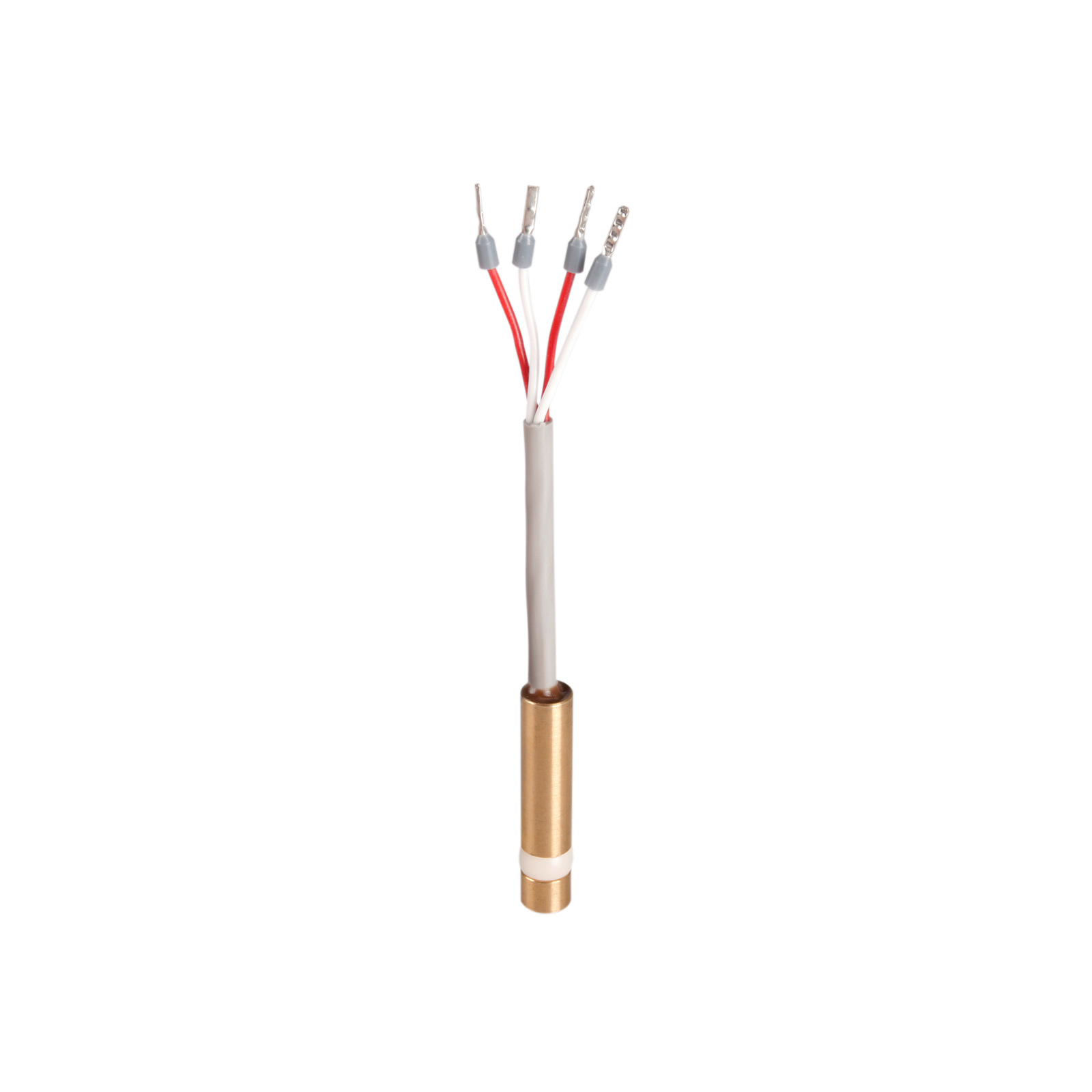

CONTROL-PLUS plug-in temperature sensor

figure T5100 140 00

• tolerance class A

• for insertion in the isolating unit of the MULTI-THERM circulation balancing valve, the measuring nozzles of the MULTI-FIX-PLUS circulation balancing valve and the measuring nozzles of the MULTI T-PIECE

• for all dimensions

Pt 1000 temperature sensor

figure 128 0G

• wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water

• plugged port for optional installation of a drain- or sampling valve

• 9mm immersion sleeve for thermometer or Pt1000

• G 1/4 for assembly of a sampling valve or a drain valve

• male union thread

Multi-T adapter, union thread

figure 138 00 005

• to be used in combination with KEMPER flow and temperature sensors for analysis, documentation and adjustment of operating conditions of water installations

• for connection to flow sensor figure 138 4G, 5V DC supply from potable measuring instrument

• measuring input for hand-held temperature sensor Pt1000 Figure 138 00 003

• measuring input for CONTROL-PLUS plug-in temperature sensor Figure 138 00 004

• measuring input for pressure sensor Figure 138 00 006

CONTROL-PLUS portable measuring instrument for sensors
