Product Classification
Frost-proof outdoor taps
figure 578 00
• construction set version, suitable for the brick shell installation and for the subsequent installation in completed outer wall
• wetted metal parts made of dezincification-free and corrosion-resistant gunmetal (in closed position), resistant against aggressive water
• universal length for all common installation depths
FROSTI® NEW frost-proof outdoor valve, with operating handle, construction set version
figure 578 03
• construction set version, suitable for the brick shell installation and for the subsequent installation in completed outer wall
• wetted metal parts made of dezincification-free and corrosion-resistant gunmetal (in closed position), resistant against aggressive water
• universal length for all common installation depths
FROSTI® NEW frost-proof outdoor valve, with socket wrench, construction set version
figure 578 05
• construction set version, suitable for the brick shell installation and for the subsequent installation in completed outer wall
• wetted metal parts made of dezincification-free and corrosion-resistant gunmetal (in closed position), resistant against aggressive water
• special length for large wall thickness
FROSTI® XL NEW frost-proof outdoor valves, with operating handle, XL construction set version
figure 579 02
• pre-assembled
• wetted metal parts made of dezincification-free and corrosion-resistant gunmetal (in closed position), resistant against aggressive water
• suitable for fast subsequent installation on already finished outer wall
FROSTI® NEW frost-proof outdoor valves, pre-mounted design
- Stop Valves ꁕ
- Safety Valves ꁕ
- Pressure Reducing Valves and Filter
- Balancing valves ꁕ
- Measuring Products
- Hygiene System KHS ꁕ
- Thermal separators
- Flush-mounted valves
- Stop valves water meter combinations ꁕ
- Frost-proof outdoor taps
- TRESOR Cabinets ꁕ
- Sampling Valves
- ThermoSystem KTS ꁕ
- Other Valves
- Accessories ꁕ
-
Spare parts
ꁕ
- Spare parts for stop valves
- Spare parts for protection and safety valves
- Spare parts for pressure reducing valves and filters
- Spare parts for balancing valves
- Spare parts for measuring products
- Spare parts for sampling valves
- Spare parts for flush-mounted valves
- Spare parts for stop valve water meter models
- Spare parts for frost-proof outdoor taps
- Spare parts for TRESOR cabinets
- Spare parts for hygiene system KHS
- Spare parts for dirt traps
- Handwheels and gaskets

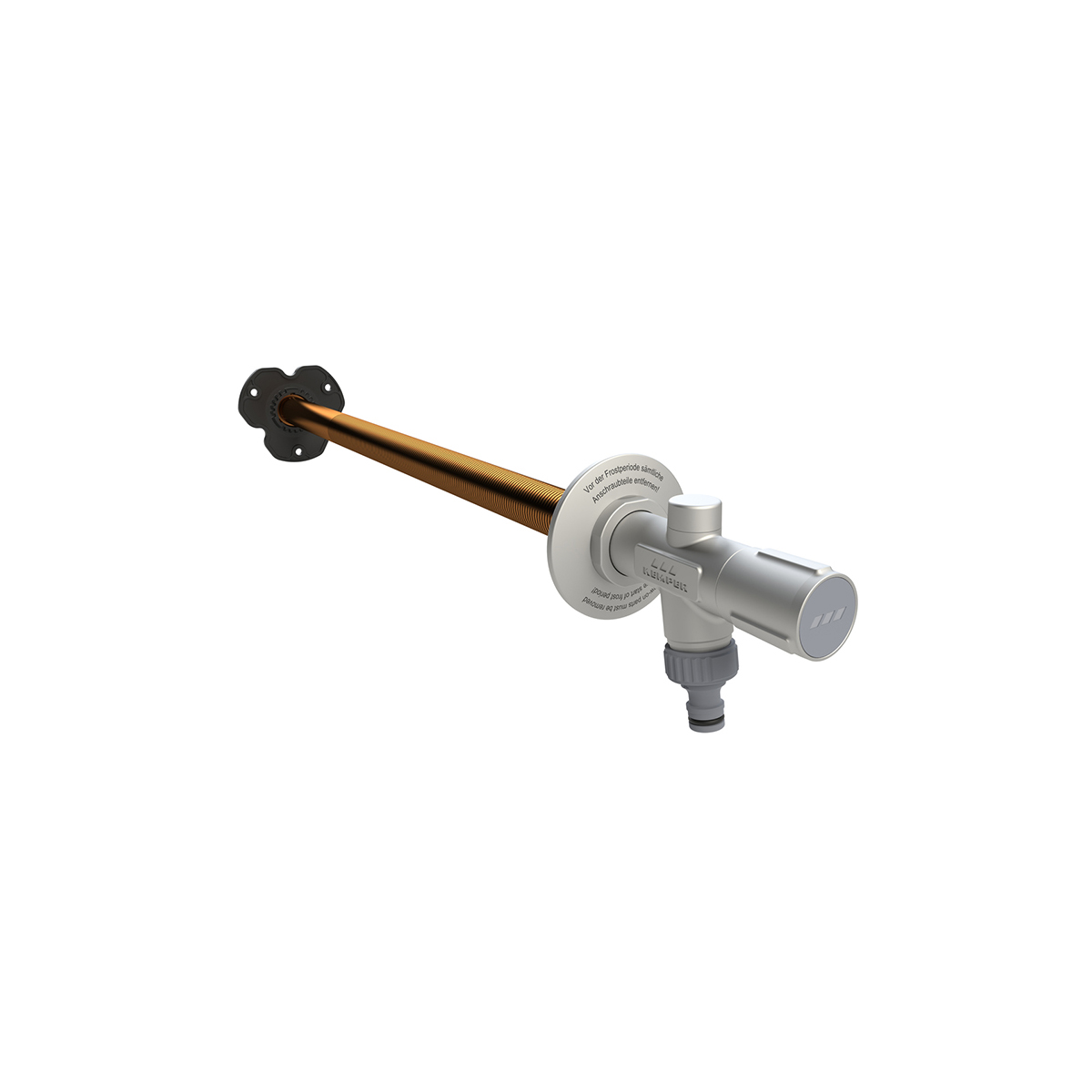

Frost-protected outdoor tap
The FROSTI® frost-proof outdoor tap is permanently installed and automatically drains itself every time it is shut off. This means that no residual water remains in the area that is at risk from frost. Water damage from a frozen outdoor tap is a thing of the past. The tap can therefore be used all year round and it is no longer necessary to drain it manually.
No more bacteria growth caused by lack of use of outside tap
By completely draining the valve, bacteria growth caused by stagnant water that would otherwise compromise the quality of the drinking water is also prevented.
Operating principle
FROSTI®-PLUS
Frost-proof outdoor tap as a set
The set allows the valve to be installed as early as the shell construction phase. The discharge body is mounted after the outer wall has been completed.
- A single end-to-end length for installation depths from 150 to 415mm (XL version from 150 to 530 mm) *
- Continuous adjustment to outer wall thicknesses up to 655mm (XL version up to 770 mm) possible with “Extension for FROSTI®-PLUS” (Figure 574 00 002)
- Above-average discharge of 40 l per minute at 0.1 MPa (1.0 bar) flow pressure
- All parts wetted in a closed state are made of gunmetal and so can be used for all drinking water qualities
*with surface mounting
FROSTI®
Frost-proof outdoor tap, factory pre-assembled
The factory pre-assembled valve for subsequent quick and easy installation on already finished outer walls. With a total external diameter of only 27mm and adjustable collar.
- A single end-to-end length for installation depths from 150 to 415mm (XL version from 150 to 530 mm) *
- Can be extended to any length on the construction site for wall thicknesses from 150 to 492mm
- Universal R 1/2" connection and 15mm Cu pipe for soldering and pressing
- Above-average discharge of 40 l per minute at 0.1 MPa (1.0 bar) flow pressure
- All parts wetted in closed state are made of gunmetal and so can be used for all drinking water qualities
*for surface mounting
FROSTI® accessories
Frost-proof outdoor taps
